CORE AICHI RANGE
New AICHI Access Equipment-Tracked Boom LiftsÂ
AICHI SR21CJM
Telescopic Chain Boom Lift
- Max working height: 22.70 m
- Max lateral outreach: 16.70 m
- Engine: Yanmar diesel
- Weight: 14,200 kg
- Basket load: 250 kg
- Basket rotation: ±90°
- Turret: 360° continuous
- Electro-hydraulic proportional control
A heavy-duty tracked boom lift built for maximum reach and performance on uneven ground.
AICHI SR12CSM
Telescopic Chain Boom Lift
- Max working height: 14.10 m
- Max lateral reach: 10.70 m
- Engine: Yanmar diesel 18.9 kW
- Weight: 7,500 kg
- Basket load: 250 kg
- Basket rotation: ±90°
- Turret: 360° continuous
- Electro-hydraulic proportional control
A compact tracked boom lift designed for challenging terrain, with low ground compaction ideal for forestry and outdoor use. Optional: RAL paint, 3.5 kW generator, rubber track pads.
Wheeled Boom Lifts
AICHI SP21CJM
- Max working height: 23.00 m
- Max horizontal outreach: 16.70 m
- Engine: Yanmar diesel (4TNV98-1NAS)
- Weight: 13,600 kg
- Basket load: 250 kg
- Gradeability: 24°
- Basket rotation: ±90°
- Turret: 360° continuous
Telescopic Boom Lift
A high-reach wheeled boom lift combining a telescopic boom and articulated jib for outstanding versatility at height. Electro-hydraulic proportional control and full ground control panel as standard.
AICHI SP14DJ
Telescopic Boom Lift
- Max working height: 15.90 m
- Max lateral reach: 12.60 m
- Engine: Yanmar diesel 33.7 kW with DPF
- Basket load: 270 kg
- Basket rotation: ±90°
- All-terrain tyres
- No outriggers required
A proven all-terrain wheeled boom lift — robust, outrigger-free, and built for demanding outdoor environments. Optional: RAL paint, 3.5 kW generator.

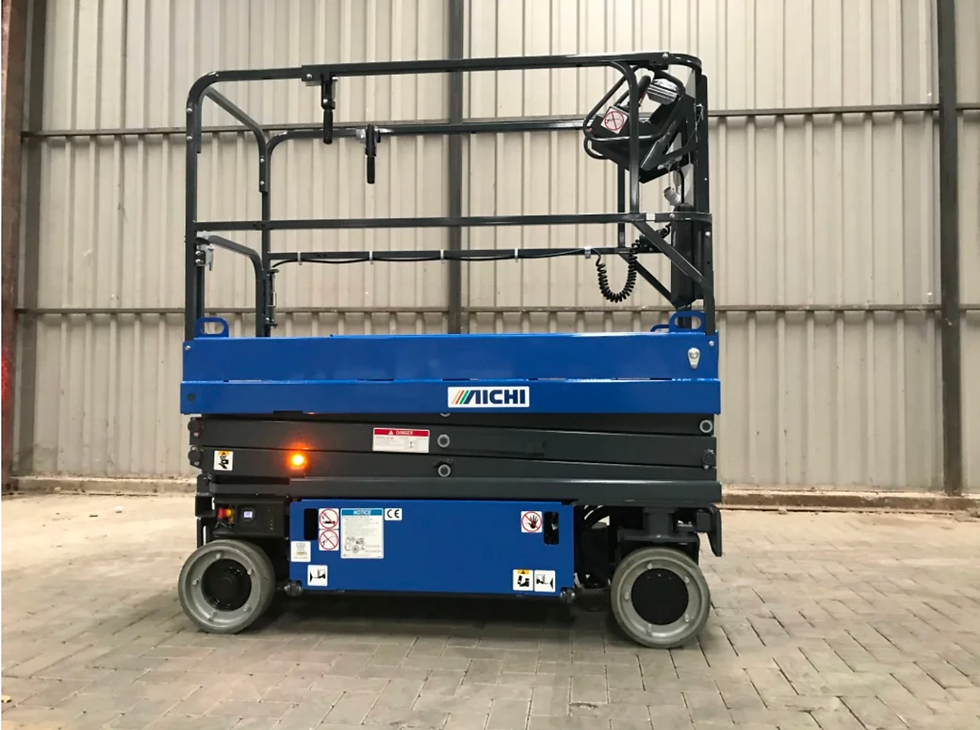

Scissor Lifts
